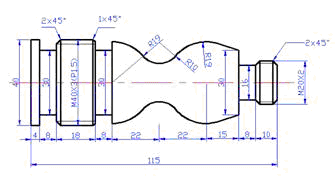

数控车削轴加工编程综合举例(图)
更新日期:2022-07-29  来源:数控工作室

O0005
N10  T0101
N20  S400
N30  G00  X46  Z2
N40  G71  U1.5  R1
N50  G71  P60  Q130  U0.5  W0.2  F0.3
N60  G00  X19.8
N70  G01 Z-18
N80  X38.5
N90  Z-85
N100  X39.8
N110  Z-111
N120  X40
N130  Z-120
N140  G70  P60  Q130  S1000  F0.05
N150  G00  X50  Z50
N160  T0202
N170  S200
N180  G00  X22  Z-14
N190  G01  X16  F0.03
N200  G04  P1000
N210  G00  X22
N220  Z-180
N230  G01  X16  F0.03
N240  G04  P1000
N250  G00  X22
N260  Z-11
N270  G01  X16  Z-14  F0.2
N280  G00  X22
N290  Z-3
N300  G01  X15  Z0.5  F0.2
N310  G00  X40
N320  Z-81
N330  G01  X30  F0.03
N340  G04  P1000
N350  G00  X40
N360  Z-85
N370  G01  X30  F0.03
N380  G04  P1000
N390  G00  X38
N400  G01  X42  Z-87  F0.1
N410  G00  Z-107
N420  G01  X30  F0.03
N430  G04  P1000
N440  G00  X42
N450  Z-111
N460  G01  X30  F0.03
N470  G04  P1000
N480  G00  X42
N490  Z-104
N500  G01  X34  Z-108  F0.1
N510  G00  X50
N520  Z60
N530  T0303
N540  S500
N550  G00  X60  Z-18
N560  G73  U9.5  W0  R10
N570  G73  P580  Q640  U0.5  W0  F0.3
N580  G00  X30
N590  G01  Z-18
N600  X36.016  Z-26.942
N610  G03  X24.758  Z-47.414  R19
N620  G02  Z-62.586  R10
N630  G03  X38  Z-77  R19
N640  G01  Z-78
N650  G70  P580  Q640  S1000  F0.05
N660  S450
N670  G00  X41  Z-81
N680  G92  X39.2  Z-105  F3
N690  X38.9
N700  X38.6
N710  X38.3
N720  X38.05
N730  G00  X41  Z-79.5
N740  G92  X39.4  Z-105  F3
N750  X38.9
N760  X38.6
N770  X38.3
N780  X38.05
N790  G00  Z3
N800  X22
N810  G92  X19  Z-12  F2
N820  X18.5
N830  X18.1
N840  X17.7
N850  X17.4
N860  G00  X50  Z50
N870  T0202
N880  S200
N890  G00  X42  Z-119
N900  G01  X0  F0.03
N910  G28  U0  W0  T0200
N920  M30
